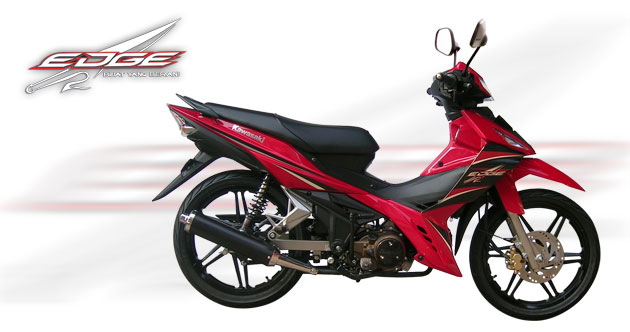

Kawasaki EDGE Variant Moped Motorcycle

Kawasaki EDGE Variant Moped Motorcycle

Kawasaki EDGE Variant Moped Motorcycle

Kawasaki EDGE Variant Moped Motorcycle

Kawasaki EDGE Variant Moped Motorcycle

Kawasaki EDGE Variant Moped Motorcycle
SPECIFICATION Kawasaki EDGE Variant Moped Motorcycle
  • Type 4 stroke, SOHC 2 Valves
  • Bore x Stroke 53 x 50.6mm
  • Amount & Fill Cylinders 1 fruit & 112 cc
  • Compression Ratio 1: 9.5
  • 8:30 HP/8000 rpm Maximum Power
  • 8:13 Nm/6500 rpm Maximum Torque
  • Keihin PB18 carburetor (Mark P064)
  • Starter System Kick & Electric Starter
  • Transmission 4 Speed Rotary Type
  • Total Transmission 4 speed
  • Pattern transfer Teeth N-1-2-3-4-N (Rotary)
  • Type of Chain Drive Systems Final Reduction
  • Ratio Teeth
  • Ke1 - 3,000 (36/12)
  • 2nd - 1,938 (31/16)
  • 3rd - 1,350 (27/20)
  • 4th - 1,087 (25/23)
  • Type final drive system 2714 (38/14)
  • Overall Drive Ratio 8900 at Top-gear
Kawasaki EDGE Variant Moped Motorcycle
  • Ignition System DC-CDI
  • Lubrication System Forced Lubrication
  • Filtration Systems Oil and Oil Filter Screen
  • Lubricant Oil Capacity 1.1 liters
  • Type of Engine Oil API SE, SF or SG / SAE
  • NGK Spark plug C6HSA
  • Under-bone Frame Type, Tubular
  • Length x Width x Height 1899 x 700 x 1045 mm
  • Distance Axis Wheels 1.230mm
  • Distance to Land 140mm
  • Julur Front 280mm
  • Julur Rear 400mm
  • Maximum Weight 104 kg
  • Front Brakes Hydraulic, single disc, 2 piston caliper
  • Rear Brake Drum
  • Tank Capacity 4.4 Liter
  • Color Black Metallic, Lime Green, Blue Metallic, Red Metallic
Kawasaki EDGE Variant Moped Motorcycle
  1. Rp. 12.900.000 (on the road) - EDGE R
  2. Rp. 13.800.000 (on the road) - EDGE VR
