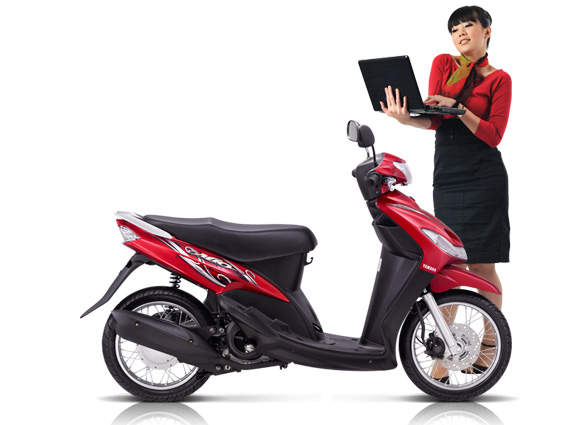

Yamaha MIO Automatic New Motorcycle



Yamaha MIO Automatic New Motorcycle

Yamaha MIO Automatic New Motorcycle

Yamaha MIO Automatic New Motorcycle

Specification Yamaha MIO Automatic
Yamaha MIO Automatic ENGINE
  • Engine type: 4 Step, SOHC 2-valve Air
  • Diameter Stroke: 50.0 x 57.9 mm
  • Cylinder Volume: 113.7 cc
  • Compression Ratio: 8.8: 1
  • Power Max: 6:54 km (8.9 ps) / 8.000 rpm
  • Max Torque: 7.84 Nm (0.88 kgf.m) / 7.000 rpm
  • Lubrication system: Wet sump
  • Engine Oil: 0.9 Liter
  • Carburetor: NCV24x1 (Keihin)
  • Transmission: Automatic V-Belt
  • Clutch: Dry, Centrifugal Automatic
  • Caster / Trail: 26.5 degrees / 100 mm
  • Dental Ratio: 2399-0829
  • Starter System: Kick & Electric
Yamaha MIO Automatic Chasis
  • Frame Type: Steel Tube
  • Suspension Front: Telescopic
  • Rear Suspension: Telescopic
  • Brakes Front: Single Hydraulic Disc
  • Brakes Rear: Drum
  • Tires Front: 70/90-14MC 34P
  • Rear tires: 80/90-14MC 34P
Yamaha MIO Automatic DIMENSION
  • Length x Width x H: 1.820 x 675 x 1.050 mm
  • Seat Height: 745 mm
  • Distance Between Wheels: 1.240 mm
  • Distance to Land: 130 mm
  • Tank Capacity: 3.7 Liter
  • Empty Weight: 87 Kg
